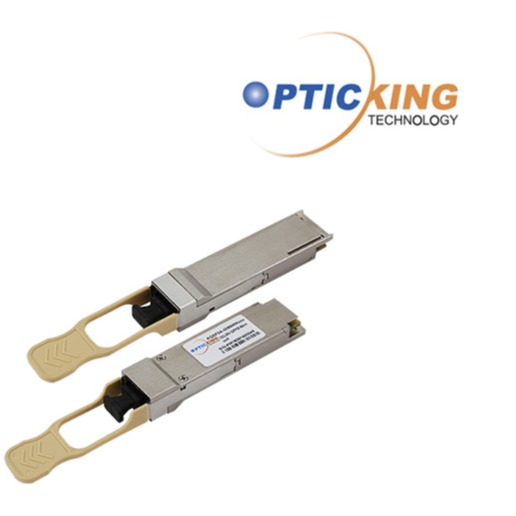

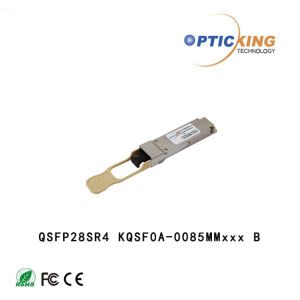

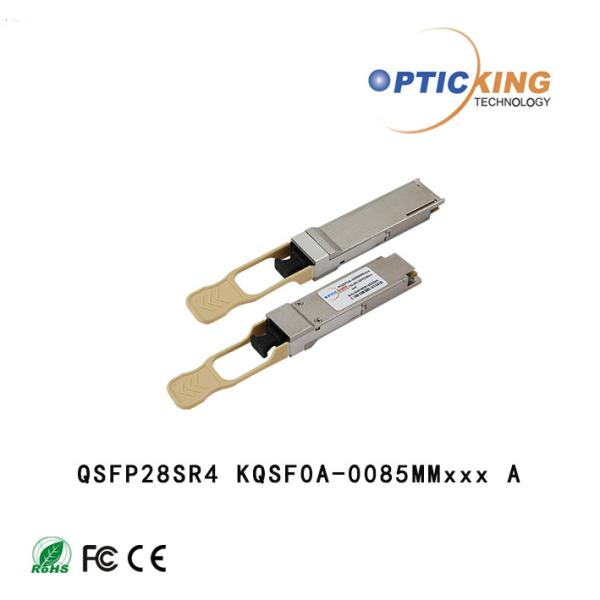

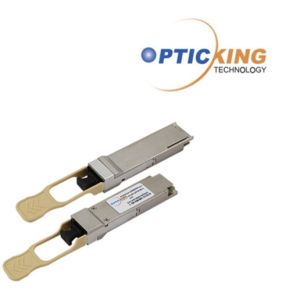

100G QSFP28 SR4 100M MTP/MPO MMF optical transceiver module

Featured with high reliability, low insertion loss and better signal quality, the 100GBASE-SR4 QSFP28 transceiver is widely applied for 100G Ethernet ToR/Leaf to Spine links reach up to 100m. 100G-SR4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. It provides high-density and low-power 100GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications. It is fully compliant with the QSFP28 MSA, IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard.

Product Features

1. Hot-pluggable QSFP28 form factor
2. 4 channels full-duplex transceiver module
3. Supports 103.125Gb/s aggregate bit rate
4. 4 channels transmitter
5. Internal CDR circuits on both receiver and transmitter channels
6. Support CDR bypass
7. Built-in digital diagnostic functions
8. Operating case temperature range: 0 to 70°C
9. Single 3.3V power supply
10. RoHS-6 compliant (lead free)

Applications

1. 100G Ethernet
2. InfiniBand DDR

Ordering Information
