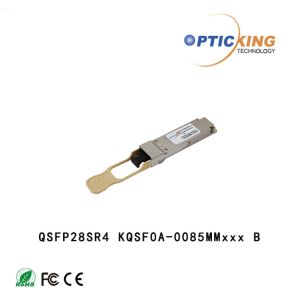

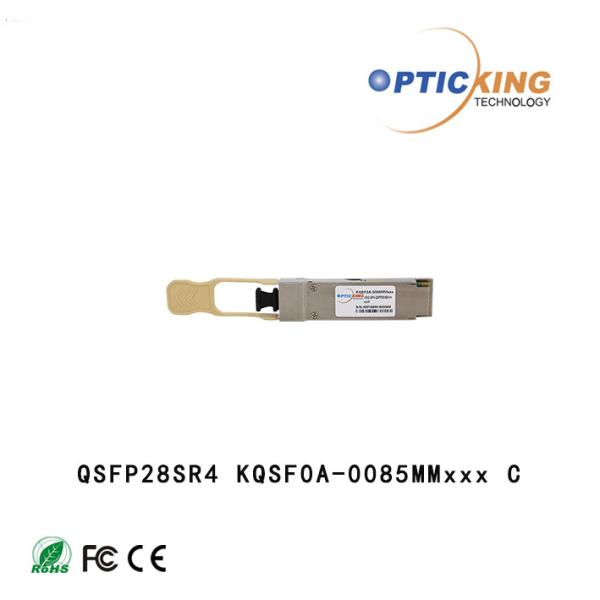

100G QSFP28 SR4 850nm 100M MPO optical transceiver optical module for Ethernet Data Center

It is fully compliant with the QSFP28 MSA, IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. The Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. It provides high-density and low-power 100GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications.

Product Feature

• 4 independent full-duplex channels
• Up to 28Gb/s data rate per channel
• QSFP28 MSA compliant
• Up to 100m OM4 MMF transmission
• Maximum power consumption 3.5W
• MTP/MPO optical connector
• Compliant to IEEE 802.3bm 100GBASE-SR4
• RoHS-6 compliant
• Single 3.3V power supply
• Operating case temperature
• Commercial: 0°C to +70°C

Applications

• 100G Ethernet
• InfiniBand DDR

Ordering Information
